Getting Started

Step 1: Import the Core and WinForms SDK

System Requirements

List the basic environment requirements needed to run the project:

  • Operating System: Windows 10 or higher
  • .NET Version: .NET 6.0 or higher

NuGet Package Installation

To use the Realtime control, you need to install the following NuGet packages:

StarFlare.AudioVisualizer.Core
StarFlare.AudioVisualizer.WinForm
StarFlare.AudioVisualizer.WPF

You can install these packages by running the following commands in the NuGet Package Manager Console:

Install-Package StarFlare.AudioVisualizer.Core
Install-Package StarFlare.AudioVisualizer.WinForm
Install-Package StarFlare.AudioVisualizer.WPF

Alternatively, you can add them via the Package Manager UI by searching for each package.

Usage

using AudioVisualizer;
using AudioVisualizer.WinForm;

Step 2: Add the RealtimeApiWinFormControl Control

Drag and drop the AudioVisualizerView onto your form or add it programmatically:

AudioVisualizerView audioVisualizer = new AudioVisualizerView();
this.Controls.Add(audioVisualizer );

Step 3: Get Hook up microphone and speaker

        private void MainForm_Load(object sender, EventArgs e)
        {
            // Speaker voice capture, Specify capture wave format: mono, 32-bit depth, IeeeFloat encoding, 8192 sample rate.
            capture = new WasapiLoopbackCapture()
            {
                WaveFormat = WaveFormat.CreateIeeeFloatWaveFormat(8192, 1)
            };
            capture.DataAvailable += Capture_DataAvailable;

            // Mic speech capture
            speechWaveIn = new WaveInEvent
            {
                WaveFormat = WaveFormat.CreateIeeeFloatWaveFormat(8192, 1)
            };
            speechWaveIn.DataAvailable += Capture_DataAvailable;

            audioVisualizer1.AudioSampleRate = capture.WaveFormat.SampleRate;
            audioVisualizer1.Scale = 5;
            audioVisualizer1.VisualEffect = VisualEffect.SpectrumBar;

            audioVisualizer1.Start();
            capture.StartRecording();
            speechWaveIn.StartRecording();
        }

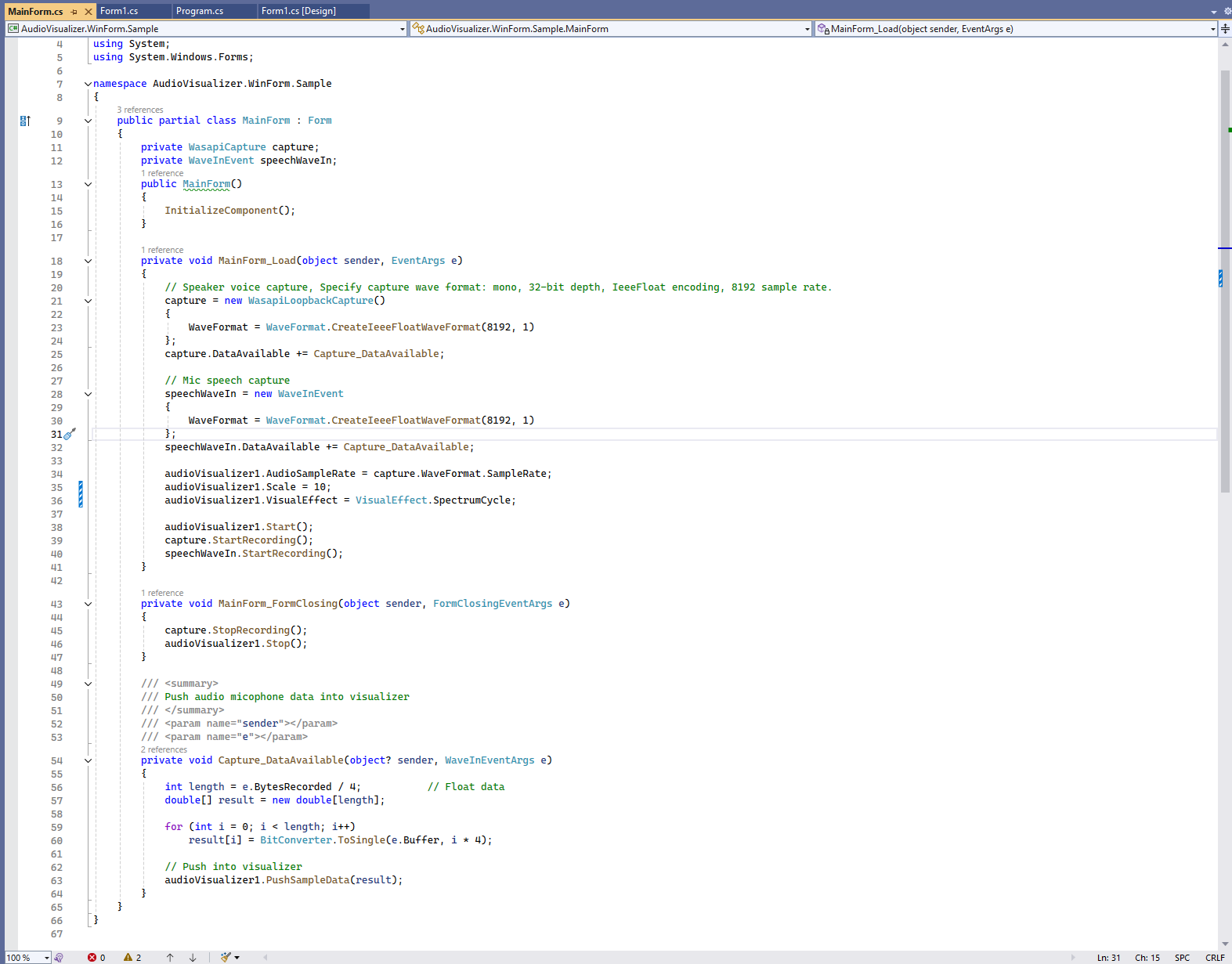

Code Sample 1 Sample 2

License

Licensed under the MIT License.
